Positron V3.2
The Positron V3.2 is an upgraded version of Kralyn's upside-down, foldable, tiny CoreXY printer that conveniently fits into a filament box! Collaborating with the Positron team, LDO has dedicated the past year to optimizing the kit, ensuring it is easy to assemble and yields excellent results. The kit incorporates high-quality components, such as genuine Gates belts, an included Raspberry Pi-based screen, and a highly transparent ITO glass heater bed. We also upgraded the filament box to a hard case for easy and safe travels! Available early 2024!
Specifications
- Frame:Machined Aluminum
- Max Print Volume:180x180x165mm
- Firmware:Klipper
- Hotend:260C
- Bed:ITO Glass - 85C
- Bed Leveling:Manual
- Display:3.5" Touchscreen
- Max Print Speed:250mm/s
- Supported Filament:PLA, PETG
- Filament Diameter:1.75mm
- Acceleration:8000mm/s^2
- Controller Board:LDO Positron Mainboard
- Net Weight:3Kg
- Weight with Storage Case:5.5KG
- Slicing Software:Superslicer, OrcaSlicer etc.,
- Nozzle Diameter:0.4mm
Features
Upside-down, compact, portable, and super fast 3D printer - Positron V3.2 has it all. A compact 3D printer that packs into a filament spool box hard case, so you can take it anywhere you want. This design is looking at a 3D printer less like a stationary machine, but more like a powerful tool in a maker/inventor's tool kit. The printer deploys and folds up in less than 90 seconds, fits easily inside a bag, and prints at 200+mm/s.
Assembly Guides
Step-by-step assembly instructions for Positron V3.2. Follow these guides in order for the best assembly experience.

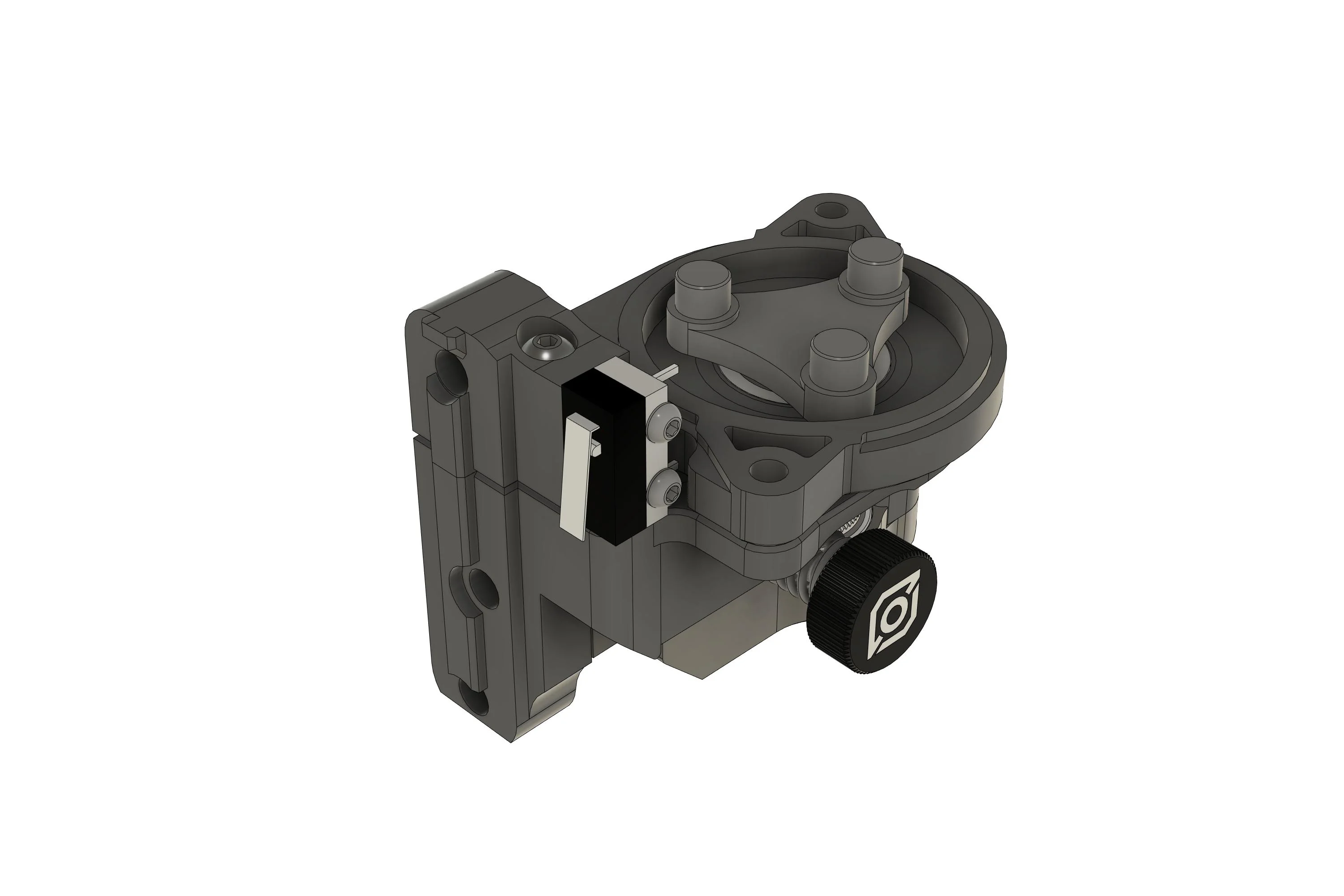

1 - Positron V3.2 - Extruder
This guide walks your through the assembly of the bowden extruder for the Positron V3.2. We also recommend you checking wiki.positron3d.com during the whole build as there are many helpful information.

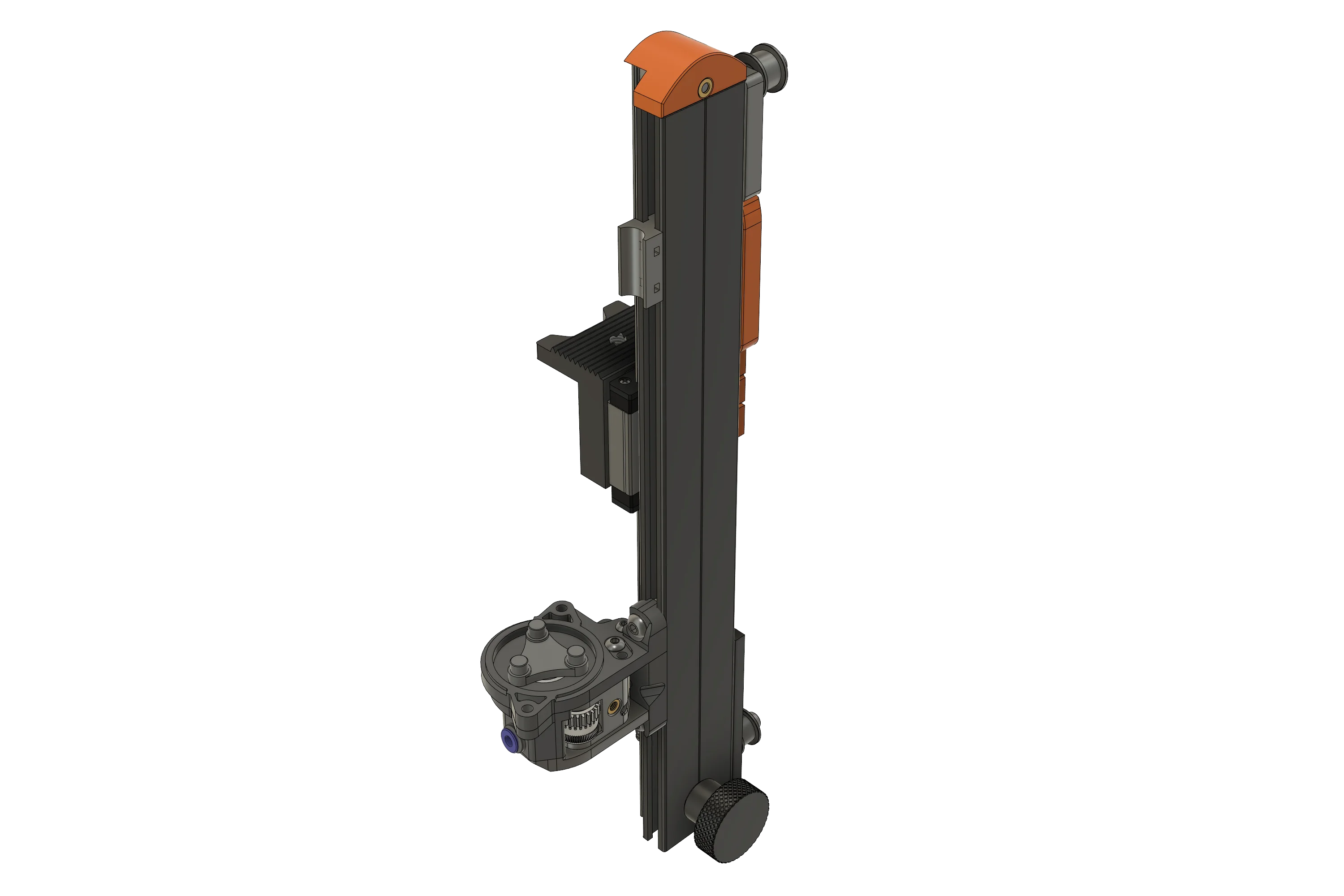

2 - Positron V3.2 - Z Column
In this guide we will build the Z column for the Positron V3.2.
3 - Positron V3.2 - Z Drive
This guide contains instructions for building the Z drive for the Positron V3.2.

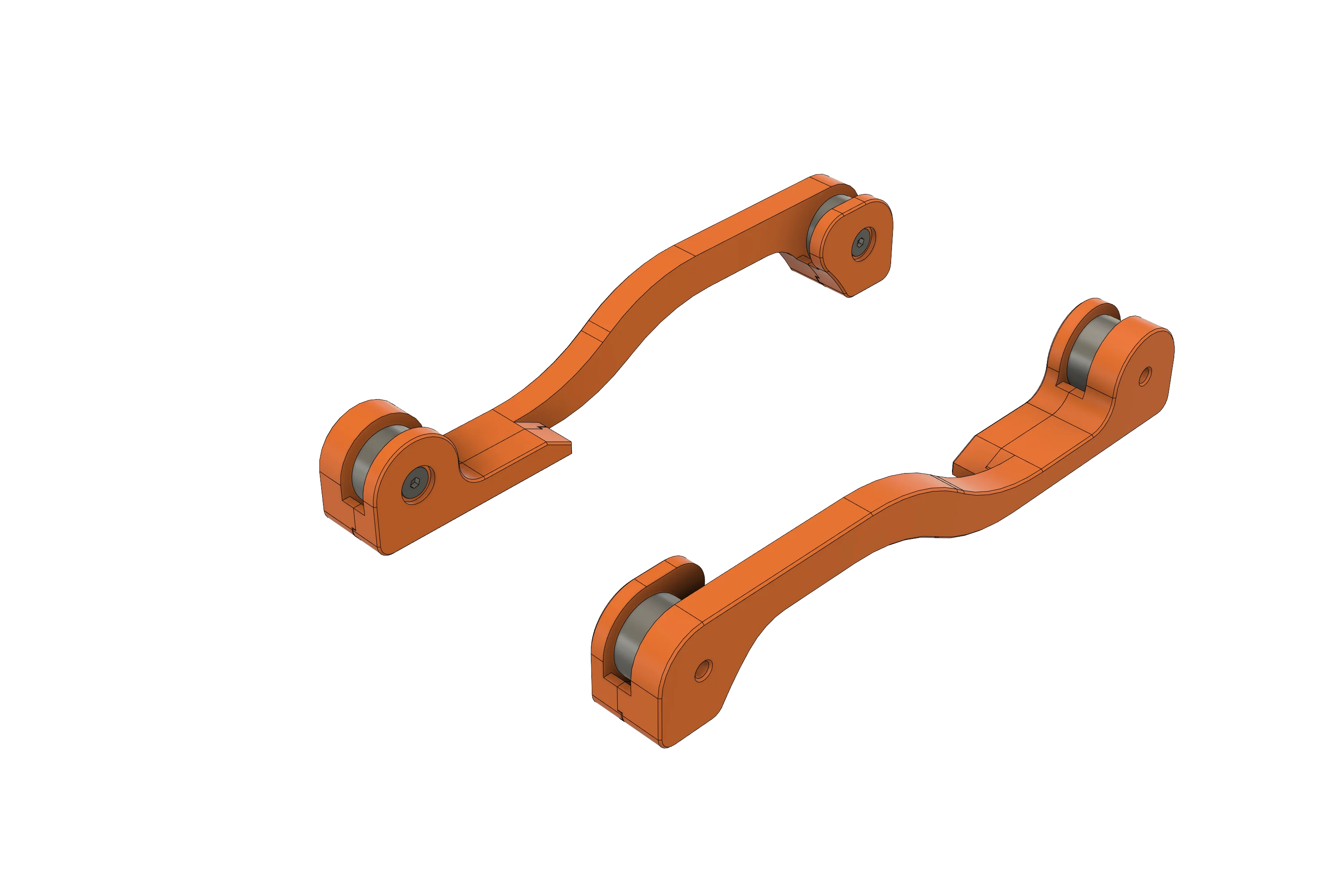

4 - Positron V3.2 - Bed V Holder
This guide contains instructions for building the bed V holder for the Positron V3.2.

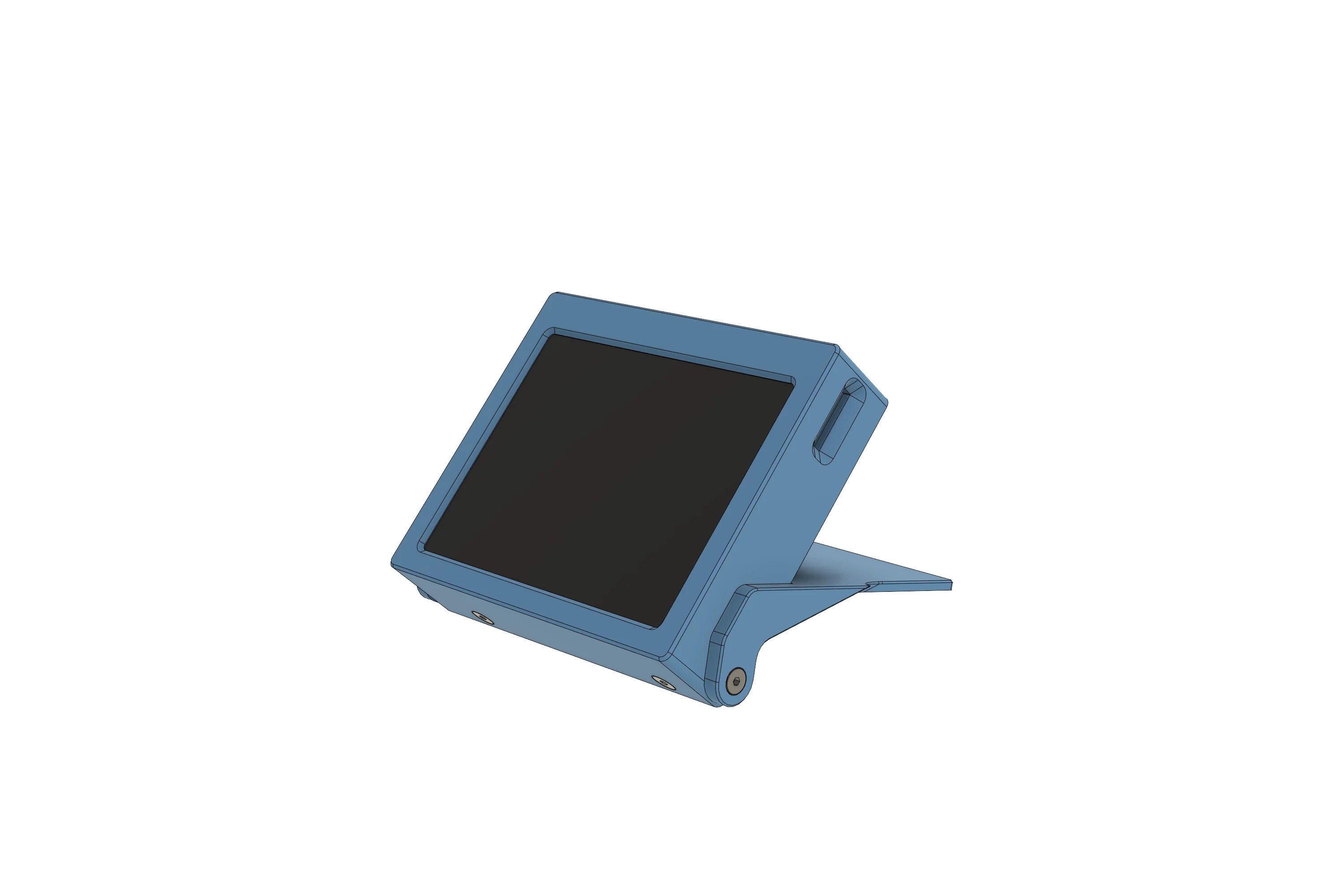

5 - Positron V3.2 - Touch Panel
This guide contains instructions for building the touch panel for the Positron V3.2.

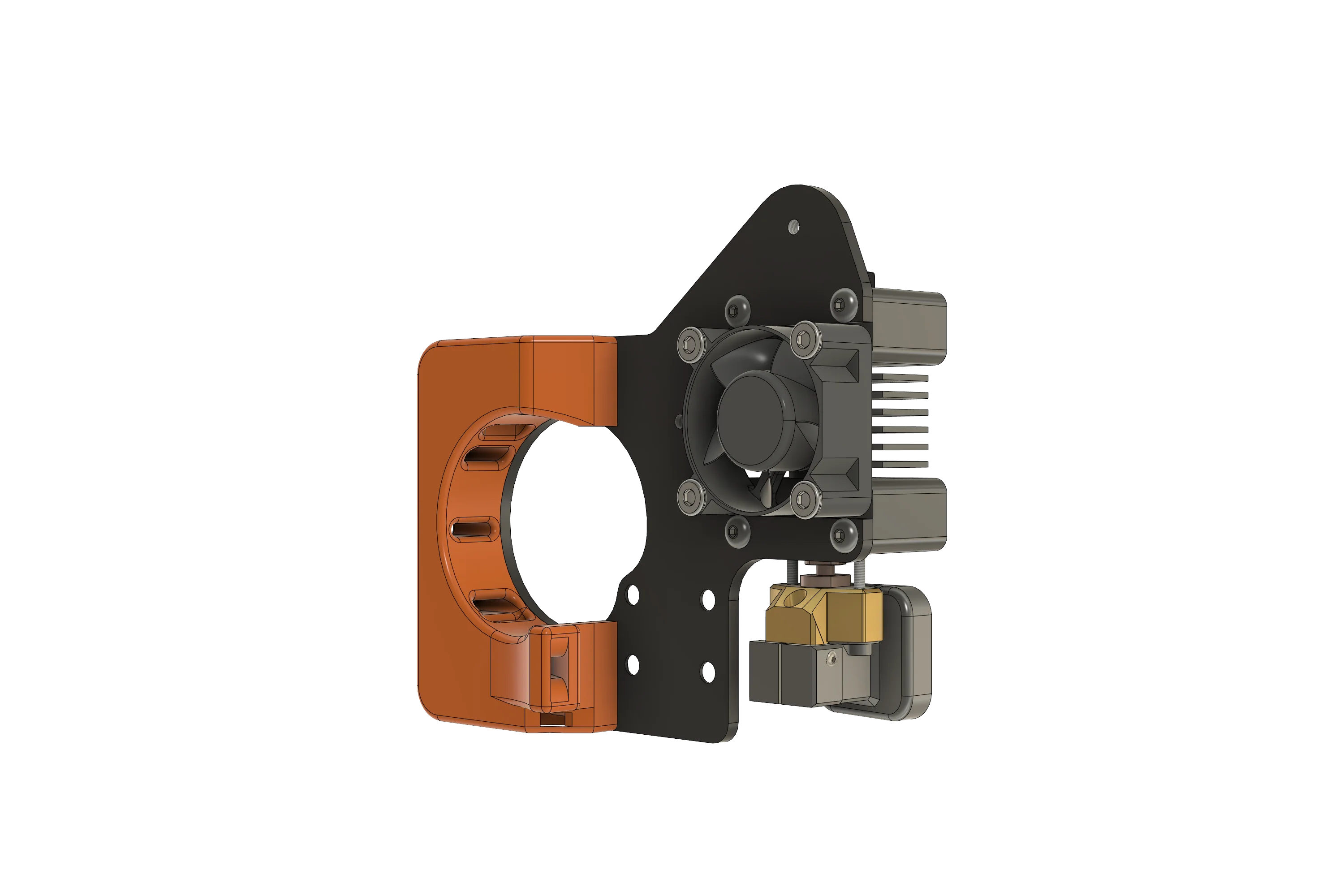

6 - Positron V3.2 - Toolhead
This guide contains instructions for building the toolhead for the Positron V3.2.

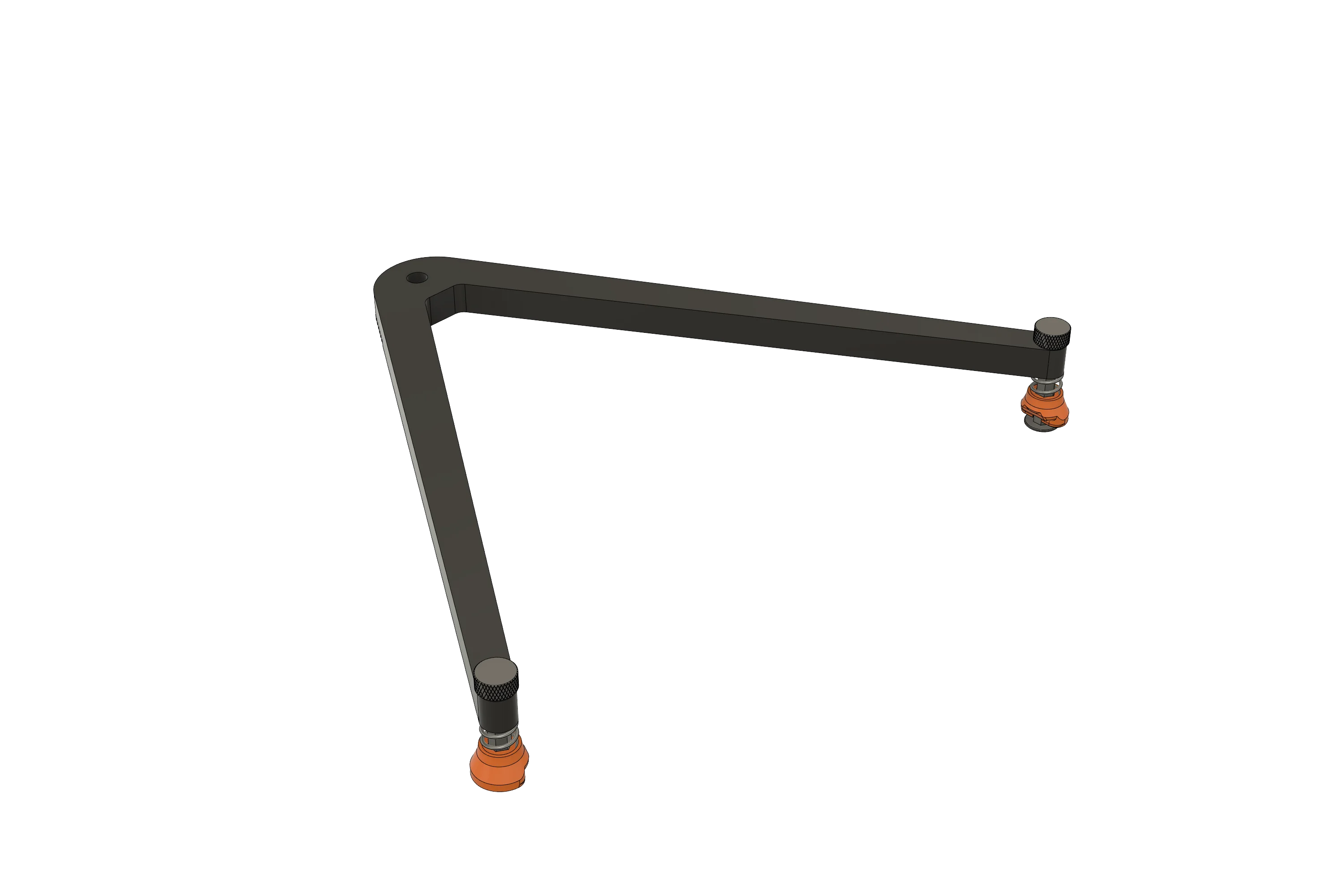

7 - Positron V3.2 - Spool Holder
This guide contains instructions for building the spool holder for the Positron V3.2.

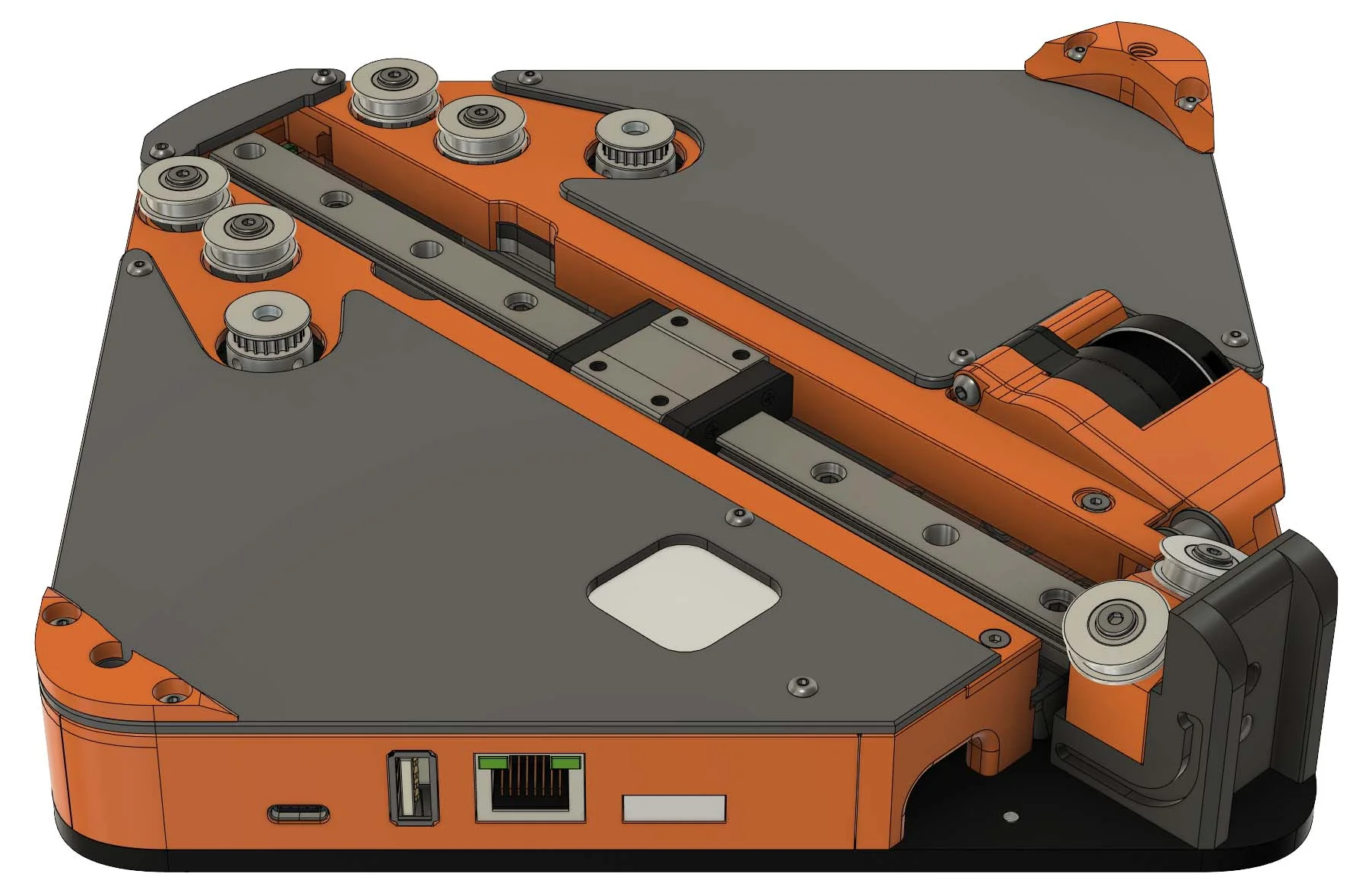

8 - Positron V3.2 - Base Plate
This guide contains instructions for building the base plate for the Positron V3.2.

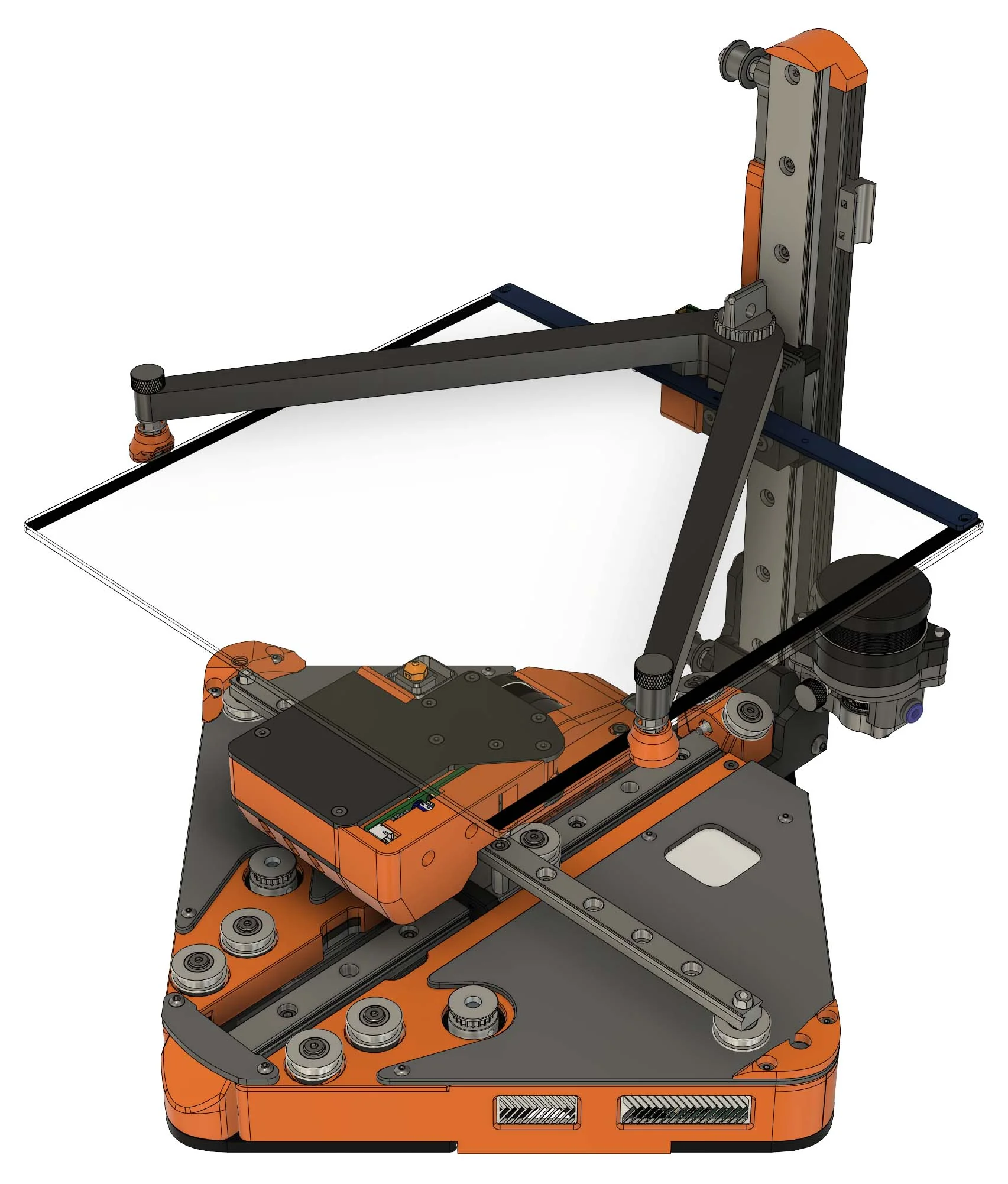

9 - Positron V3.2 - Final Assembly
This guide contains instructions for putting all the parts together.

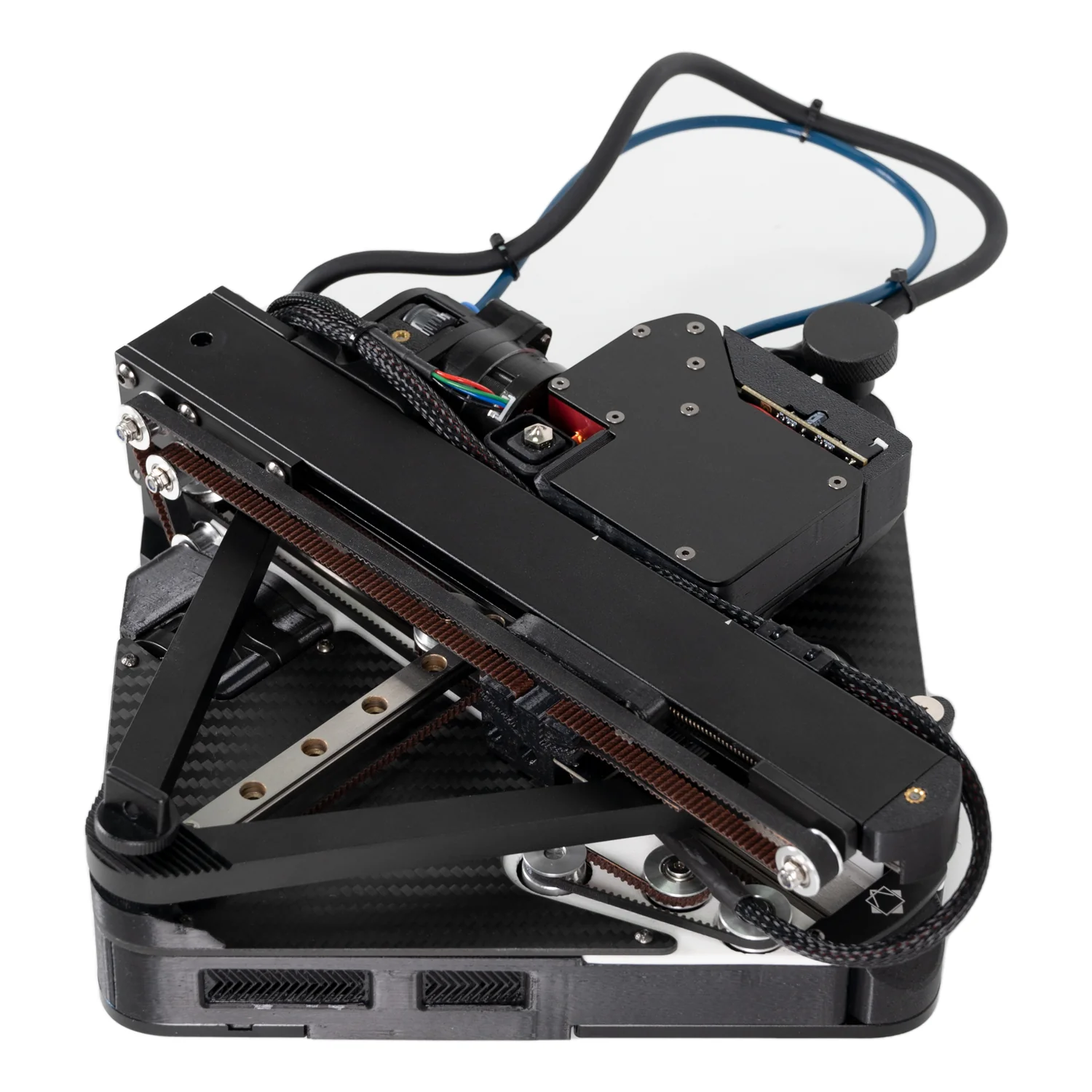

10 - Positron V3.2 - Folding
This guide walks you through the procedures of folding the Positron V3.2.
Assembly Tips
- • Follow the guides in the numbered order shown above
- • Each guide contains detailed steps with images and videos
- • Download any required files from the Downloads section above
- • Take your time and double-check each step before proceeding
